In production, define deployments to set up replicas in case of failure, then modify those deployments to roll out updates gradually.

This works best with the stack below; changing any of these components may require some tweaking:

• Any continuous integration build tool
• Container technology: Docker
• Kubernetes
• Cloud platform: Google Cloud Platform

1
2
3
4

kubectl describe deployments [name]
kubectl get replicasets

kubectl apply -f [deployment-yaml]

Infrastructure today is more about choosing tools than building them yourself. IT has moved up to higher-level services.

Kubernetes is an abstraction over containers. It lets you treat an entire cluster as if it were a single machine.

Pods have an IP address and can access volumes; they are the containers your apps run in.

Using nginx to reverse proxy the app in HTTPS:

Monitoring and health checks: https://kubernetes.io/docs/tasks/configure-pod-container/configure-liveness-readiness-probes/
Configuration: http://kubernetes.io/docs/user-guide/configmap/
Secrets: http://kubernetes.io/docs/user-guide/secrets/

Configuration and secrets files are accessed through mounted volumes defined in the Kubernetes YAML configuration file, once the secrets and configmap have been loaded on the master node.

A service is another level of abstraction: a set of identical pods.

Services: http://kubernetes.io/docs/user-guide/services/

Sample configuration files: https://github.com/udacity/ud615/tree/master/kubernetes

Useful commands

Create a Kubernetes cluster.

1
2

gcloud container clusters create k0
gcloud components install kubectl

Create a pod.

1

kubectl create -f [yaml-file]

Forward a port between the cluster and the master machine.

1
2
3

kubectl port-forward monolith 10080:80
# http://localhost:10080
kubectl logs -f monolith

Execute a command from within the container.

1

kubectl exec monolith --stdin --tty -c monolith /bin/sh

Setting nginx configuration and TLS keys.

1
2
3
4
5

kubectl create secret generic [name] --from-file=[folderls]
kubectl describe secrets [name]
kubectl create configmap [name] --from-file [conf-file]
kubectl describe configmap [name]

Create a service

1

kubectl create -f [yaml-file of type NodePort]

References

Kubernetes cheatsheet

Lesson 2 tells us how to use Docker and run an instance on Google Cloud Platform.

Using Google Compute Engine, we first create a new Linux image and connect to it through SSH, then run Docker containers on top of it.

The main advantage of containers is that you can run several isolated environments on the same operating system. You can pull an image from a repository and manage instances with the docker command line tool much as you would a regular UNIX process.

Docker images can be either downloaded or custom-built using Dockerfiles. The developer’s responsibility here is to deliver the application AND the configuration file for the container.

The images can then be pushed to a public or private registry for reuse. The most notable are Docker Hub, Quay and Google Cloud Registry.

Useful commands

Creating an instance called ubuntu on Compute Engine.

1

gcloud compute instances create ubuntu --image-project ubuntu-os-cloud --image ubuntu-1604-xenial-v20160420c

Connecting to it over SSH.

1

gcloud compute ssh ubuntu

Running nginx on the remote host.

1
2
3

michel@ubuntu:~$ sudo apt-get install nginx
michel@ubuntu:~$ sudo systemctl start nginx
michel@ubuntu:~$ curl localhost

Installing docker on the operating system.

1

sudo apt-get install docker.io

Listing Docker images and downloading the nginx image.

1
2

michel@ubuntu:~$ docker images
michel@ubuntu:~$ docker pull nginx:1.10.0

Running an image. The image is pulled automatically if it is not found locally.

1
2

michel@ubuntu:~$ docker run -d nginx:1.10.0
michel@ubuntu:~$ docker run -d nginx:1.9.3

Checking which instances are running.

1

michel@ubuntu:~$ docker ps

Stopping a Docker instance.

1
2
3
4

# Stopping instance
michel@ubuntu:~$ docker stop [container id]
# Removing instance and configuration files
michel@ubuntu:~$ docker rm [container id]

Getting the IP address of a Docker instance.

1
2

docker inspect [container id]
curl http://[ip address from inspect]

A sample Dockerfile defining a base image (Alpine Linux).

1
2
3
4

FROM alpine:3.1
MAINTAINER Kelsey Hightower <kelsey.hightower@gmail.com>
ADD hello /usr/bin/hello
ENTRYPOINT ["hello"]

Then build the Docker image and run it as described above.

1

docker build -t hello:1.0.0

Pushing an image to a registry.

1
2
3

docker tag hello:1.0.0 username/hello:1.0.0
docker login
docker push username/hello:1.0.0

To check later

• GCP Documentation - gcloud compute instances create
  • The list of images available can be obtained with gcloud compute images list: centos, cos, debian, rhel, suse, suse-sap, ubuntu-os, windows, windows-sql…
• Docker docs - Deploy a registry server

Today, I am learning more about microservices, a subject software architect Martin Fowler has been writing about a lot in his personal blog.

Kubernetes looks like a cool technology. Google, which backs it, offers an online course, Scalable Microservices with Kubernetes, aimed at both devops and developers.

The course has 4 lessons of 2 hours each for the following topics:

• Introduction to Microservices
• Building the Containers with Docker
• Kubernetes
• Deploying Microservices

Here are my notes for lesson 1, Introduction to microservices:

The course demonstrates with the following technologies: Docker, the Go language, and Google Cloud Container Engine.

The software industry is pressuring developers to release more often and more quickly. Microservices let them do so with a simplified lifecycle, but they require tooling that pushes automation and infrastructure to their limits.

Lesson 1 asks us to build a Go project from GitHub — a web server handling authentication — and then to split separate microservices out of it.

More stuff coming tomorrow with Lesson 2.

To check later

Kelsey Hightower, a main contributor to Kubernetes at Google, has written a more comprehensive tutorial on GitHub.

Today I came across some interesting resources on book authoring.

Software book author Scott Meyers gives developers tips on how to manage such a project.

As Tim Ferriss wrote, and proved with The 4-Hour Workweek, writing a book can be a one-man business muse.

References

• The architecture of Open Source Applications
• Zen Habits - Training to be a good writer
• Forbes - How to write a LinkedIn article if you’re not a writer

Doing basic balanced accounting from the command line with Ledger CLI.

Ledger is an unopinionated tool for logging every financial transaction you make in plain text.

Logging directly from the Atom text editor with the language-ledger plugin.

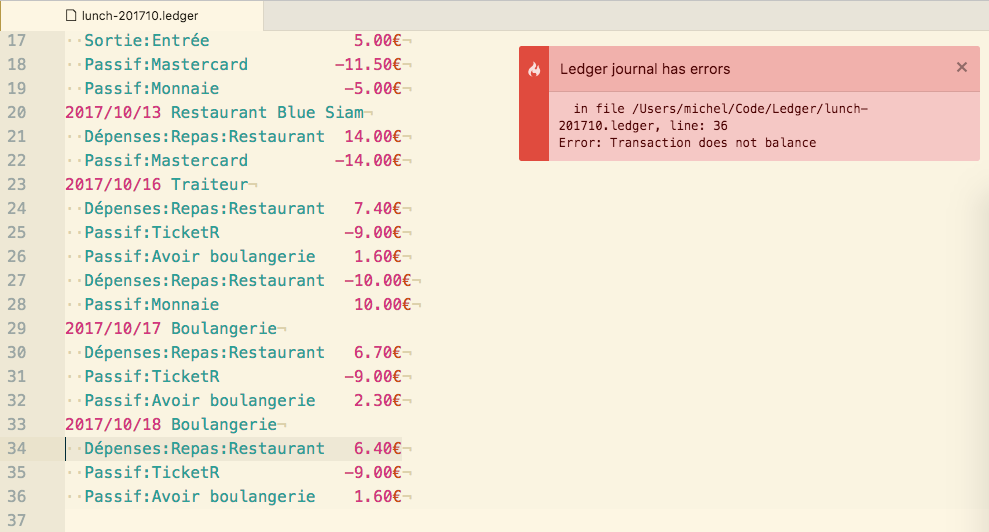

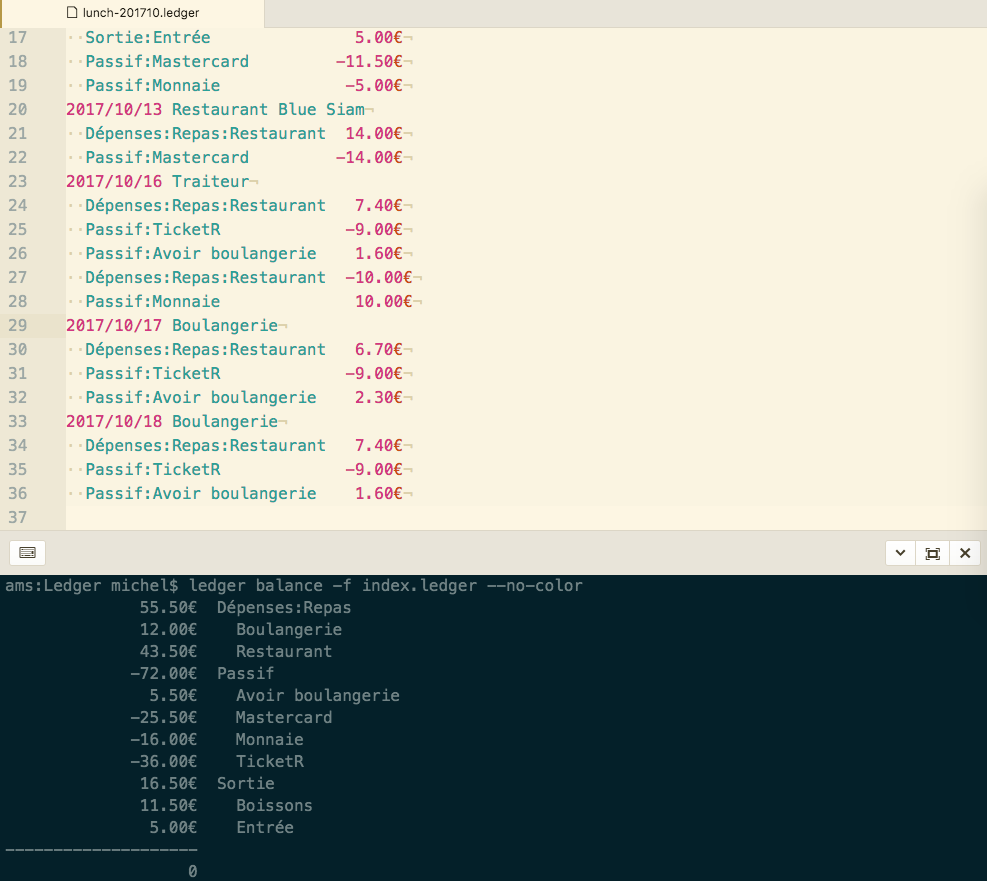

Correcting mistakes with the debugger and generating a detailed report.

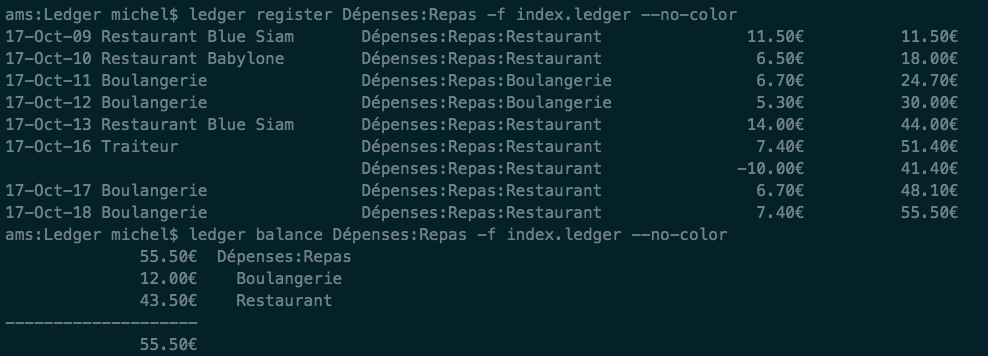

A summary by category, to see how much I have spent on lunch at work so far.

Some cool things you can do with JIRA from the command line.

https://github.com/germanrcuriel/jira-cmd
